Diesel Forklift vs. Forklift Attachments: A Complete Guide to Types, Selection, and Installation
Complete guide to forklift attachments for diesel and electric forklifts. Learn about forklift attachment as clamps, side shifters, rotators.
H1: Diesel Forklift and Forklift Attachments: The Ultimate Guide to Boosting Warehouse Efficiency
Forklift attachments are specialized tools mounted on the forklift carriage or mast to expand the range of applications for your material handling equipment. From paper roll clamps and bale clamps to side shifters and push-pull devices, these attachments enable functions such as clamping, rotating, tilting, pushing, pulling, and side shifting — transforming a standard forklift into a versatile multi-purpose handling machine. Available for both diesel and electric forklifts, these tools significantly improve warehouse productivity and operational flexibility.
H2: 1. Main Types and Functions of Forklift Attachments
Forklift attachments are categorized by their primary function. Below is a breakdown of the most common types:
H3: 1.1 Fork-Based Attachments
Attachment Type | Description | Key Specifications |
|---|---|---|
Standard Forks | The most common attachment; available in various lengths | Length: 1,220–2,400mm; Capacity: 1–10 tons |
Extended/Long Forks | Custom-made for handling long materials; available from manufacturers | Length: 3–6 meters; Ideal for timber, pipes, and container handling |
Foldable/Retractable Forks | Expandable design that extends fork length and reaches deep into racking | Maximizes warehouse storage density |
Fork Extensions (Fork Sleeves) | Slip-on attachments that fit over existing forks; removable but reduce load capacity | Suitable for occasional extended reach needs |
Tilt Carriage | Adds forward/backward tilting capability to diesel forklifts | Enables dumping of loose materials |
Below are forklift forks of various lengths, suitable for use with electric and diesel forklifts.

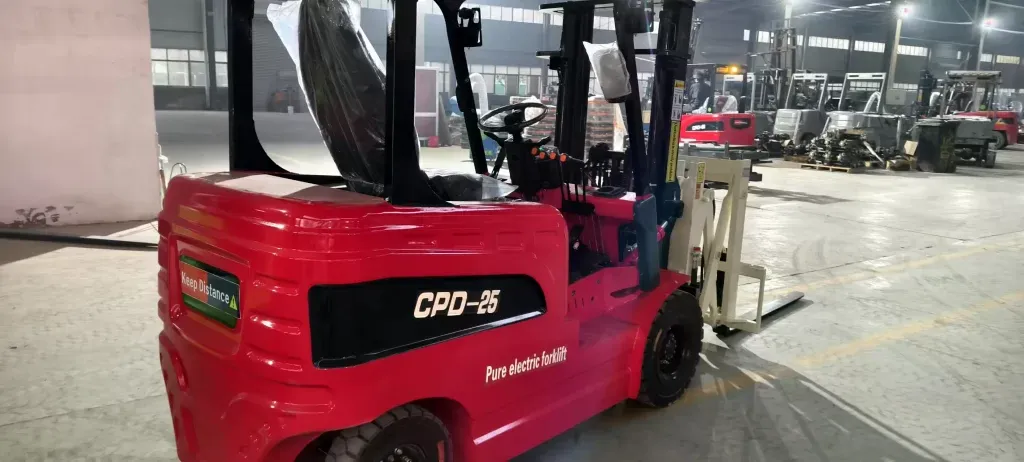

This is a 2.5-ton electric forklift recently purchased by one of our valued customers—a robust, energy-efficient material handling solution designed for indoor and semi-outdoor warehouse operations. To better meet the customer’s specific operational needs—particularly the frequent handling of oversized pallets and irregularly shaped loads—we customized the unit with heavy-duty, hydraulically operated extendable forks. These forks can smoothly extend from the standard 1,220 mm to a maximum length of 1,800 mm, significantly enhancing load stability and maneuverability in tight aisles and narrow storage zones. The forklift features AC motor technology for consistent torque delivery, regenerative braking to extend battery life, and an ergonomic cabin with intuitive fingertip controls and a fully adjustable suspension seat for operator comfort during extended shifts. In addition, it complies with international safety standards—including CE certification—and integrates LED lighting, blue warning lights, and an audible proximity alert system for enhanced visibility and workplace safety. Following installation, commissioning, and on-site operator training, the customer reported high satisfaction—not only with the machine’s performance and adaptability but also with the responsiveness of our technical support team and the seamless integration into their existing logistics workflow.
H3: 1.2 Clamp-Based Attachments
Attachment Type | Description | Key Specifications |
|---|---|---|

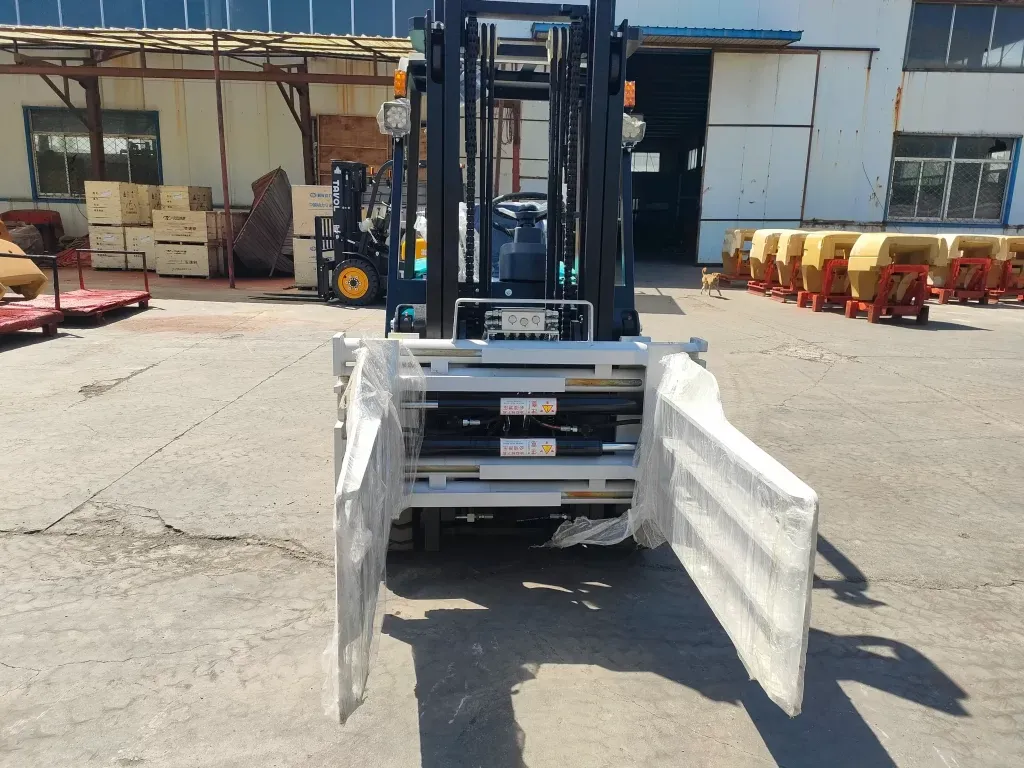

Bale Clamp | Horizontal clamping with optional side-shift function | For handling bales and packaged goods |

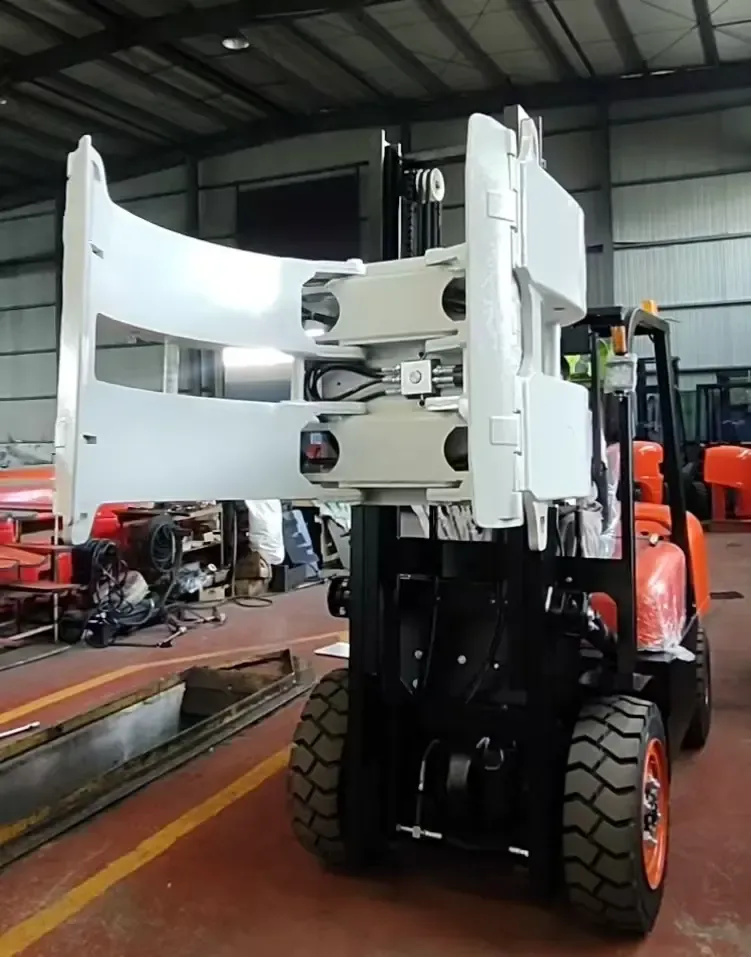

Paper Roll Clamp | Clamp arms for handling paper rolls; available with rotation; single-arm and double-arm rotation models | Arm width: 0.8–1.5m; Roll diameter: 0.3–2m; Double-arm models offer greater flexibility but at higher cost |

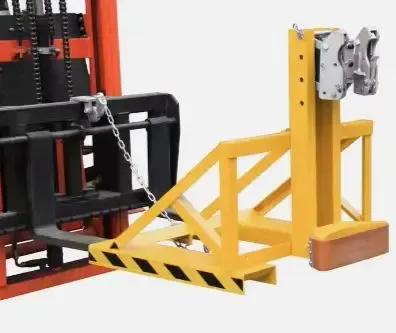

Drum Handler / Barrel Clamp | Hydraulic-driven anti-slip design for standard 200L drums | Can handle 2 drums at once |
Bale Clamp (Soft) | For handling cotton, waste paper, and other loose materials | Pressure adjustable: 0.5–2 tons |
H3: 1.3 Rotation and Positioning Attachments
Attachment Type | Description | Key Specifications |
|---|---|---|
Rotator | Full 360° rotation capability | Capacity: 0.5–5 tons; Used for rotating objects during handling |
Side Shifter | Lateral movement for precise pallet positioning | Side-shift range: ±150mm |
Side-Shift & Fork Positioning Carriage | Combines side-shift and adjustable fork spacing; allows quick adaptation to different pallet sizes | Offers high flexibility and speed |
H3: 1.4 Specialized Attachments
Attachment Type | Description | Key Specifications |
|---|---|---|
Bucket | For handling bulk materials | Capacity: 0.5–3m³ |
Aerial Work Platform | OSHA-approved with anti-fall protection | Max lift height: 12 meters |
Forklift Scale / Weighing System | Installed on diesel or electric forklifts to weigh loads during handling | Real-time weight measurement |
Scrap/Recycling Clamp | Equipped with a grid-like attachment for clamping and handling scrap materials | Suitable for metal scrap, glass waste, and recyclables |

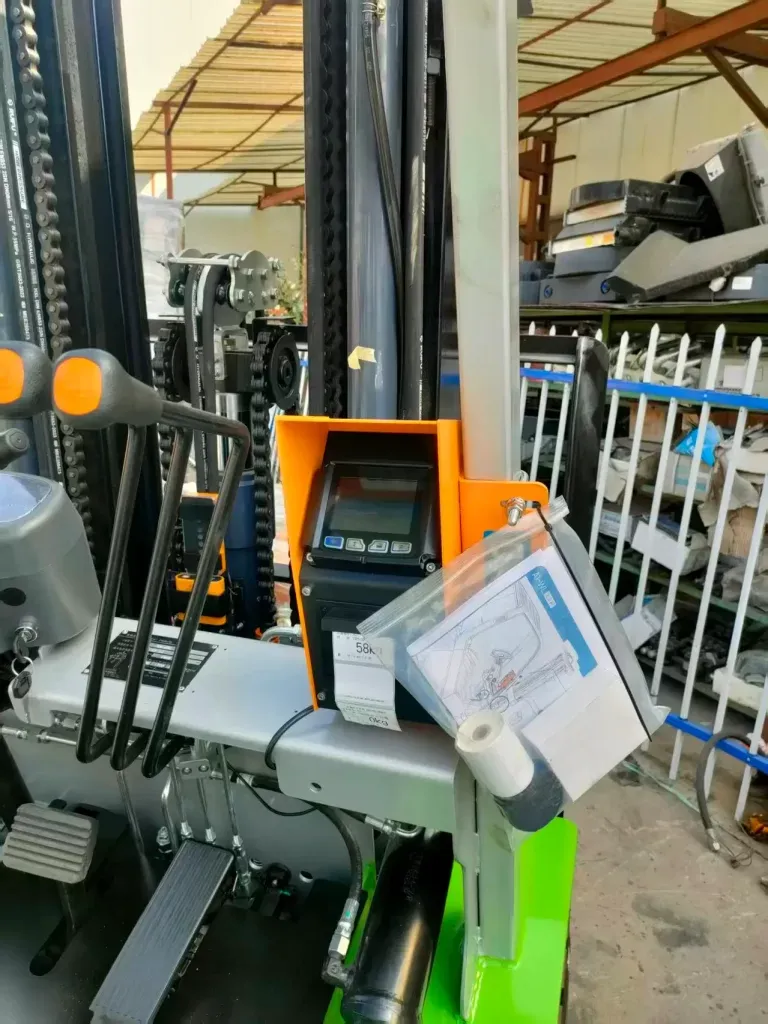

These are four diesel forklifts customized for our client. The client requires green and electronic scale functions.
H2: 2. How to Choose the Right Forklift Attachment
H3: 2.1 Match Attachments to Your Load Characteristics
- Fragile or delicate items → Prioritize foam-padded clamps or anti-slip pads
- Irregularly shaped loads → Custom fixtures required (e.g., automotive part holders)
- Cylindrical or tire-shaped loads → Select appropriate clamp arm length to match dimensions
H3: 2.2 Consider Forklift Specifications
When selecting attachments, pay close attention to these critical parameters:
Consideration | Details |
|---|---|
Load Capacity | Attachment capacity must be ≤ forklift rated load (e.g., a 3-ton forklift cannot safely operate a 5-ton rotator) |
Mast Clearance | Mast height must allow sufficient clearance for attachment installation; minimum 50mm clearance recommended |
Weight Impact | Attachment weight reduces net load capacity (e.g., a side-shifter reduces capacity by approximately 200–500kg) |
Weight Calculation | Attachment weight counts toward overall load; for example, a 200–300kg bale clamp on a 3-ton diesel forklift reduces effective capacity to approximately 2.5 tons (at 3-meter lift height) |
H3: 2.3 Real-World Application Examples
Industry | Recommended Attachment |
|---|---|
Cold Chain / Cold Storage | Stainless steel attachments for corrosion resistance |
Chemical Industry | Explosion-proof clamps with ATEX certification |
Tire Manufacturing | 1.3–1.5m rotating clamps (tire clamps) for multi-tire handling |
Warehouse / Logistics | Side-shifter and free-lift functions are standard custom upgrades |
H2: 3. How to Install Forklift Attachments
Forklift attachments are designed to replace the standard forks and can be swapped out depending on the application.
Quick Installation & Switching:
Modern forklift attachments feature pin-type quick-change connectors that allow for rapid installation and removal. This design enables seamless switching between different functions throughout the workday — maximizing equipment utilization and reducing downtime.
Multi-Fleet Efficiency Tip:
For operations with high throughput and frequent switching needs, many businesses choose to equip multiple forklifts with different attachments simultaneously. This eliminates changeover time altogether and significantly improves workflow efficiency.
💡 Pro Tip: Investing in a dedicated fleet with pre-installed attachments reduces downtime and eliminates the labor cost associated with frequent attachment changes.
H2: 4. Frequently Asked Questions (FAQs)
Question | Answer |
|---|---|
Can forklift attachments be used on both diesel and electric forklifts? | Yes, most attachments are compatible with both diesel and electric forklifts, provided the mounting system matches the carriage type (e.g., Class II, III, or IV) |
Does adding an attachment reduce my forklift’s load capacity? | Yes. The weight of the attachment reduces your available net load capacity. Always check the forklift’s data plate and derate accordingly |
What is the most common forklift attachment? | The side-shifter is the most widely used attachment, allowing operators to precisely position loads without repositioning the truck |
How do I know if an attachment fits my forklift? | Check carriage type, mounting class, mast clearance, and hydraulic pressure requirements — your dealer or manufacturer can provide a compatibility guide |
Are specialized attachments expensive? | Costs vary widely; standard attachments like side-shifters are affordable, while custom or hydraulic attachments (e.g., rotators, clamps) typically represent a larger investment |
5. Conclusion — Selecting the Right Attachment for Your Diesel or Electric Forklift
Forklift attachments are powerful productivity tools that unlock the full potential of your equipment. Whether you operate diesel or electric forklifts, choosing the correct attachment — based on load type, forklift capacity, and operating environment — will significantly enhance efficiency, reduce labor costs, and improve workplace safety.
