Sep 18, 2026Reach Truck
Narrow Aisle Electric Forklift: 3-Wheel and Stand-Up Models for Tight Warehouse Spaces
Narrow aisle electric forklifts — including 3-wheel and stand-up reach trucks — maximize warehouse storage density. Compare models, specs, and prices in this 2026 guide.
Narrow Aisle Electric Forklift: 3-Wheel and Stand-Up Models for Tight Warehouse Spaces
Introduction: Why Warehouse Space Optimization Matters
As warehouse rental costs continue to climb, storage cost pressure has become one of the top concerns for businesses looking to improve space utilization. High storage costs and limited urban land availability are forcing warehouse managers to "go vertical for space and go narrow for density."
To maximize warehouse space, reducing aisle widths to add more racking — and selecting narrow aisle forklifts to operate in those aisles — is a proven strategy to reduce storage costs. The most common types of equipment for this purpose include 3-wheel electric forklifts and stand-up electric forklifts.
As a professional Chinese electric forklift manufacturer, we'll walk you through the types of narrow aisle forklifts available and provide detailed guidance to help you choose the right model for your operation.
Why Choose Narrow Aisle Electric Forklifts?

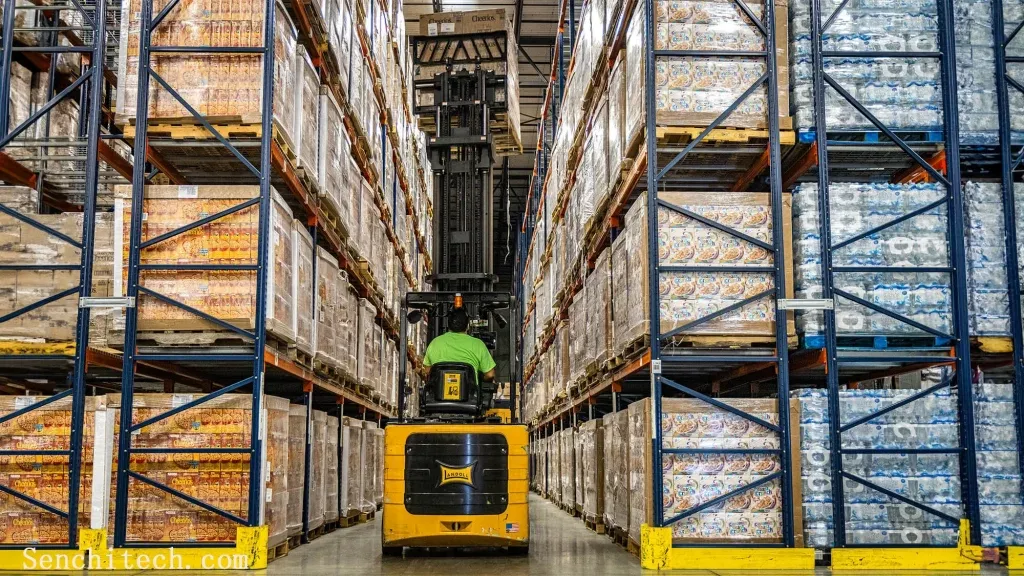

Understanding Narrow Aisle Racking (VNA Racking)
Before diving into narrow aisle forklifts, it's important to understand narrow aisle racking. Also known as Very Narrow Aisle (VNA) racking, this system is derived from standard selective pallet racking. The key difference is that the picking aisle width is significantly reduced — typically 1.6m to 2.0m — allowing for a 30%–60% increase in space utilization.
To operate in these narrow aisles, forklift manufacturers developed narrow aisle forklifts specifically designed to work in tight warehouse spaces.
Narrow Aisle vs. Very Narrow Aisle (VNA)
Category | Aisle Width | Forklift Type |
|---|---|---|
Narrow Aisle | 8.5–10.5 ft (2.6–3.2m) | 3-wheel electric forklifts, stand-up models |
Very Narrow Aisle (VNA) | 5–7 ft (1.5–2.1m) | Turret trucks (tri-lateral reach trucks) |
VNA forklifts — also known as turret trucks or tri-lateral stackers — can rotate their forks 180° and shift left or right without turning the vehicle body, enabling operation in extremely narrow aisles. This allows efficient use of both warehouse height and width, maximizing storage capacity.
The Productivity Advantage of Narrow Aisle Equipment
Even in conventional indoor warehouses, data shows that in compact spaces, narrow aisle equipment can reduce aisle collisions by 22% and improve pallet picking speed by 18%.
Narrow Aisle Forklift Types and Features
3-Wheel Electric Forklift
The 3-wheel electric forklift is a counterbalance forklift powered by electricity, characterized by its three-wheel design and compact size. It is one of the most common indoor forklifts. Compared to 4-wheel electric forklifts, it offers a smaller turning radius and a more compact body.
Advantages of 3-Wheel Electric Forklifts
Advantage | Details |
|---|---|
Ultra-Small Turning Radius | Turning radius as low as 1.5m. The rear-wheel drive single-wheel design provides exceptional maneuverability, allowing the forklift to navigate narrow loading docks and dense racking with ease |
Compact Body | The short body and 3-wheel design significantly reduce the right-angle stacking aisle width |
Indoor-Friendly | Zero emissions, low noise — ideal for indoor warehouse operations |
Disadvantages of 3-Wheel Electric Forklifts
Disadvantage | Details |
|---|---|
Lower Load Capacity | Standard capacity: 1–2.5 tons. Lift height should ideally not exceed 5 meters due to body structure limitations — higher lifts increase tipping risk |
Moderate Driving Comfort | The shortened body required for a small turning radius can reduce operator comfort |
Limited Runtime | Battery life may reach up to 10 hours, requiring charging breaks — unlike diesel forklifts that can operate around the clock |
Stand-Up Electric Forklifts
Stand-up electric forklifts come in several varieties, including stand-up electric forklifts, stand-up stackers, and stand-up reach trucks.
Compact Stand-Up Electric Forklift
Equipped with a foldable platform, standard solid tires, and a control handle. These compact models save space and are ideal for narrow aisles and indoor warehouse operations.
Models with overhead guards and an operator platform provide better operator protection, and may include LCD displays and side-pull batteries — representing a premium tier of electric forklifts.

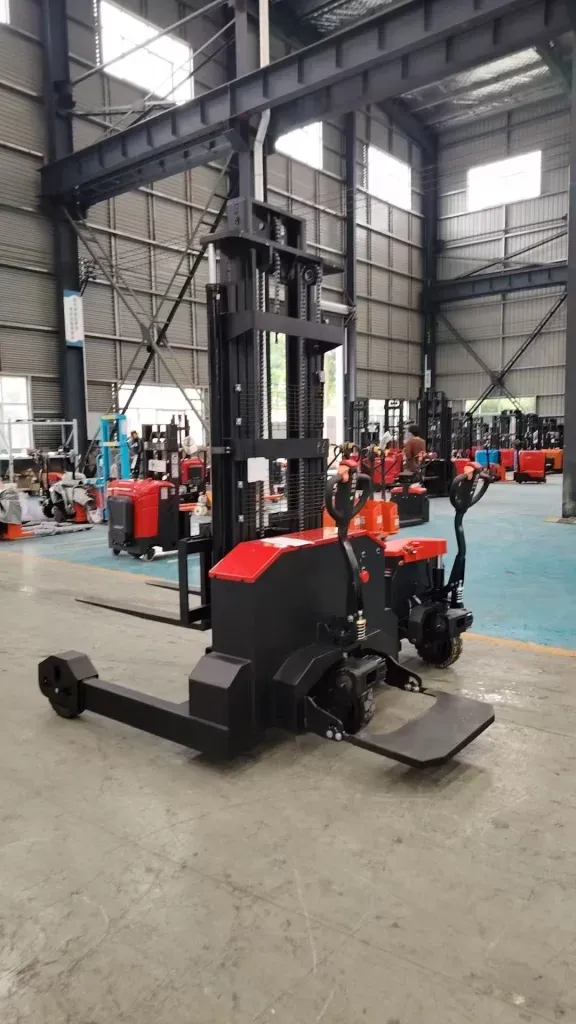

Stand-Up Stacker / Pallet Stacker
Features a foldable platform, integrated control handle, support legs, and small polyurethane solid tires. A drive wheel is located at the bottom, and hand guards can be added for safety. These electric stackers are cost-effective, with load capacities of 1–3 tons and customizable lift heights up to 6 meters (wider support legs required for higher lifts).
Stand-Up Pallet Truck
The fully electric stand-up pallet truck is an upgraded version of the manual pallet jack, improving efficiency and reducing operator fatigue during material handling. Equipped with a high-power configuration, it is designed for multi-shift, long-distance transfer scenarios. The product matrix covers both cost-effective entry-level models and heavy-duty workhorses, serving different budgets and operational intensities.

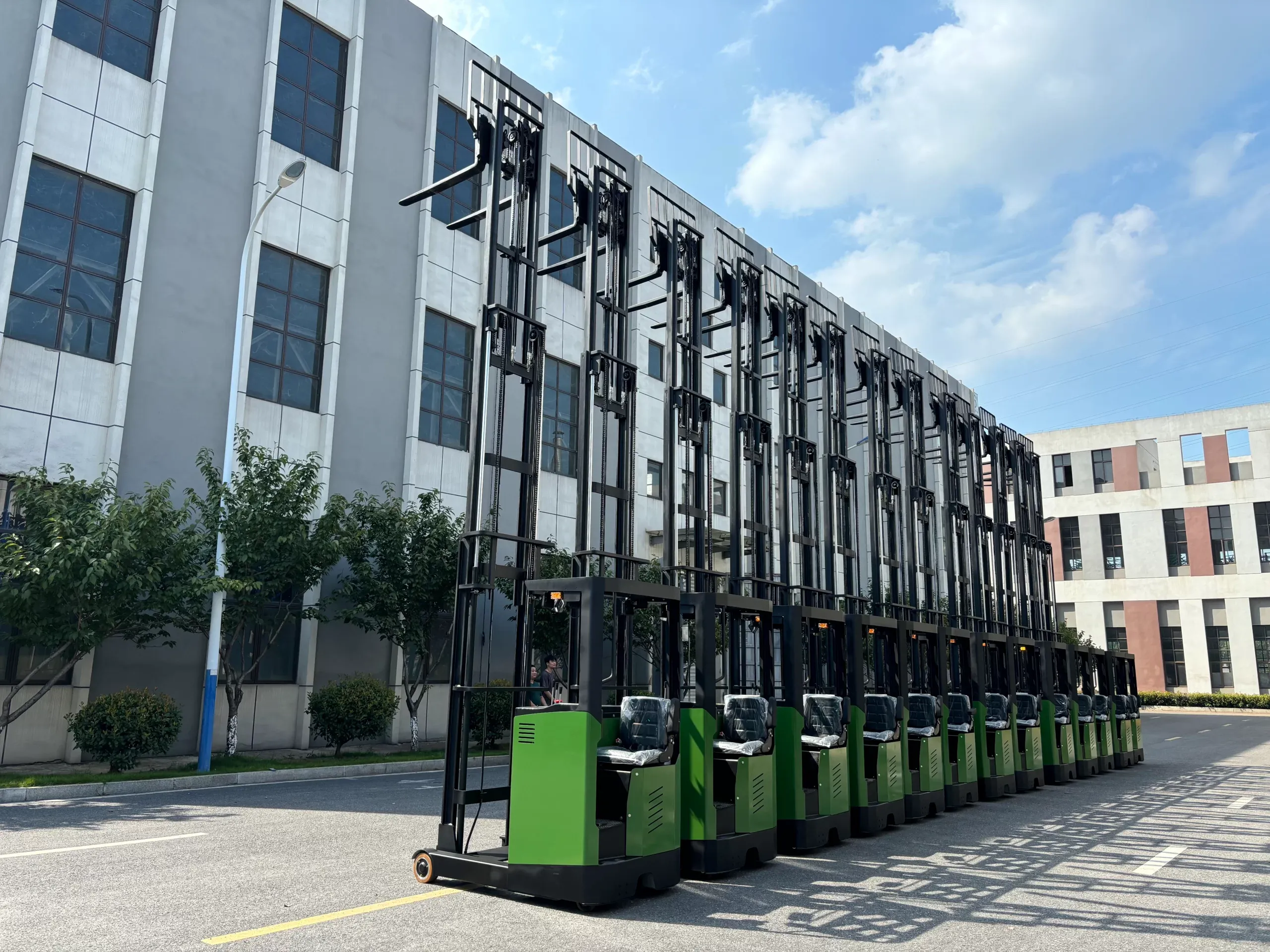

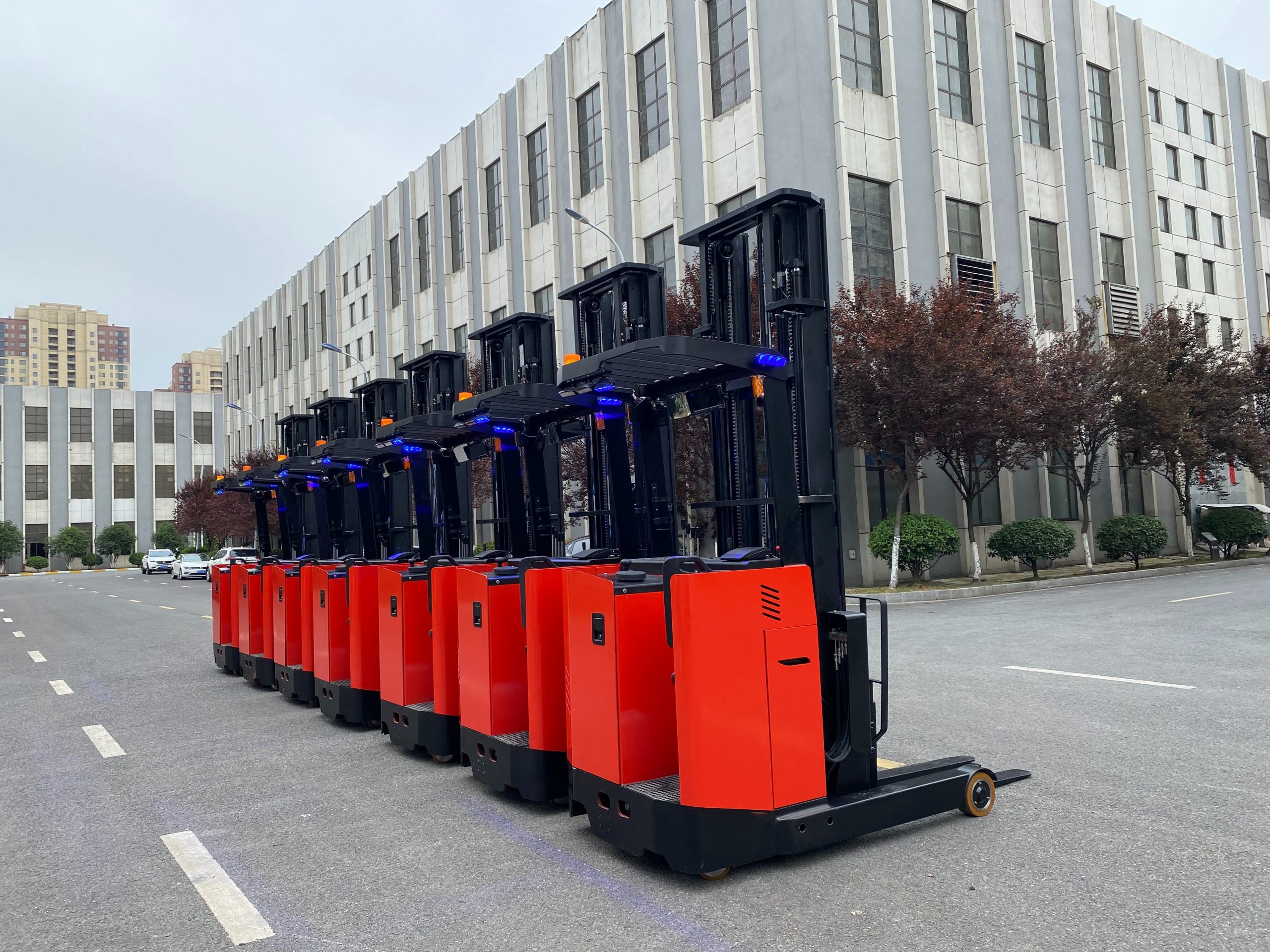

Stand-Up Reach Truck
The reach truck is a material handling vehicle with a mast that can move forward and backward. Powered by battery, it is environmentally friendly, emission-free, and quiet. It is lightweight, travels at moderate speeds, and is typically used indoors. Available in sit-down and stand-up configurations.
Key features of stand-up reach trucks:
Feature | Benefit |
|---|---|
High Lift Height | Up to 13 meters |
Small Turning Radius | Excellent for narrow aisle navigation |
Stepless Speed Control | Smoother, easier operation |
Forged Forks | Higher load capacity |
Hall Sensors | Reduced electronic wear, longer service life |
Emergency Reverse Switch | Enhanced operator safety |
Advantages of Stand-Up Electric Forklifts
Advantage | Details |
|---|---|
Improved Visibility | Stand-up design combined with optimized mast structure (narrow pillars, large windows) provides better forward visibility than sit-down models — especially useful for high-level stacking |
Frequent Mount/Dismount Efficiency | Ideal for high-frequency "unload-transfer-store" workflows, reducing time lost getting on and off the forklift |
Simple Operation | Some models feature controls integrated into the handle for easy, flexible operation |
Energy & Powertrain Revolution
Lithium-Ion vs. Lead-Acid Batteries
Factor | Lithium-Ion | Lead-Acid |
|---|---|---|
Charging Time | 2–3 hours to 80% (opportunity charging capable) | 8–10 hours |
Cycle Life | 2,000+ cycles | ~1,500 cycles |
Maintenance | Maintenance-free (no watering) | Requires regular watering |
Long-Term Energy Cost | ~30% lower | Baseline |
Multi-Shift Suitability | Excellent (random charging) | Limited (requires battery swapping or long charging) |
Energy-Saving Technology Highlights
- Regenerative Braking — Recovers energy during deceleration
- AC Motors — Improved energy efficiency
- Some models deliver up to 37.5% energy savings compared to competitors
How to Choose the Right Model for Your Warehouse
Evaluate Your Warehouse Conditions
Factor | What to Check |
|---|---|
Aisle Width | Measure actual operating aisle width (accounting for pallet overhang); confirm equipment compatibility (some models require aisles as narrow as 1,480mm) |
Capacity & Custom Lift Height | Determine load weight (3-wheel forklifts typically handle 1–2 tons) and maximum lift requirement (up to 13m for some models). Note: capacity decreases as lift height increases — always refer to the manufacturer's load chart |
Operating Environment | Cold storage (requires lithium batteries and special anti-freeze components) or high-frequency loading/unloading (stand-up models offer convenience). E-commerce warehouses need maximum storage density |
Customization Options
Electric forklifts offer extensive customization options, including side shift, fork positioning, and various forklift attachments to match your specific material handling needs.
Narrow Aisle Forklift Comparison Table
Model | Load Capacity | Lift Height | Applications | Price Range |
|---|---|---|---|---|
3-Wheel Electric Forklift | 1–2.5T | 3–6m | Standard warehouses, level outdoor areas | ~$9,000 USD |
Stand-Up Electric Stacker | 1–2T | 2–6m | Warehouses, narrow aisles | ~$3,000 USD |
Stand-Up Reach Truck | 1–2T | 3–12m | E-commerce warehouses, cold storage | ~$10,000 USD |
VNA Reach Truck (Turret Truck) | 1–2T | 3–12m | E-commerce warehouses, cold storage, distribution centers | ~$20,000 USD |
Frequently Asked Questions (FAQs)
Question | Answer |
|---|---|
What is the main difference between a 3-wheel and 4-wheel electric forklift? | Both are counterbalance electric forklifts. 3-wheel models typically have a smaller turning radius, making them ideal for narrow aisles. 4-wheel models offer better stability under heavy loads, making them more suitable for open areas or outdoor operations |
Are stand-up forklifts suitable for continuous long shifts? | They can be used, but it's not recommended for extended periods. Prolonged standing can cause operator fatigue, reducing productivity over time |
Are lithium batteries really that advantageous in narrow aisle forklifts? | Absolutely. Lithium batteries offer high energy density, fast charging (opportunity charging capable), and are maintenance-free. In high-density warehouses requiring 24/7 operation, their lower operating costs and higher equipment availability far outperform traditional lead-acid batteries |
Conclusion
Narrow aisle electric forklifts — particularly 3-wheel and stand-up models — are key assets for addressing high-density storage challenges. Stand-up reach trucks and VNA forklifts are ideal for e-commerce warehouses, offering high lift heights that effectively improve warehouse space utilization — though reach trucks come at a higher price point. Stand-up stackers offer a smaller turning radius and better cost-performance ratio, but lack the same level of operator protection.
Use this guide and the comparison table above to select the right narrow aisle forklift for your warehouse — or contact us for personalized recommendations.
